DC-280ブラシ付きモーター /方形鐵殼
用途： 制御ロック
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

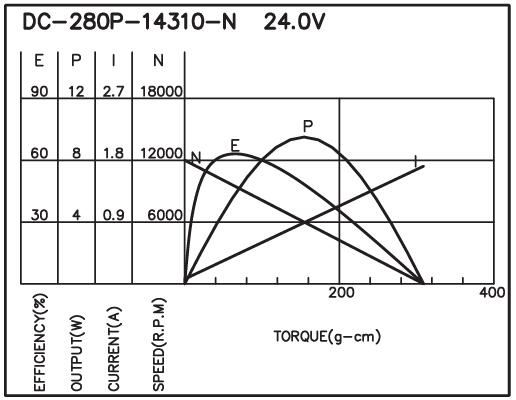

| DC-280P-14130-N | 12.0-24.0 | 24.0V CONSTANT | 12000 | 0.12 | 10200 | 0.60 | 46 | 4.51 | 4.88 | 70 | 3.29 | 302 | 29.61 |

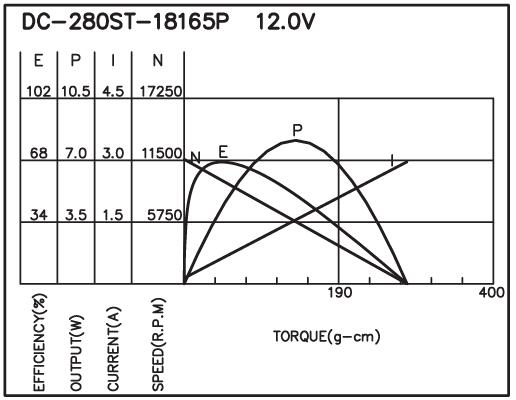

| DC-280ST-18165P | 6.0-12.0 | 12.0V CONSTANT | 11500 | 0.14 | 10060 | 0.59 | 44 | 4.31 | 4.55 | 67 | 2.96 | 275 | 26.96 |

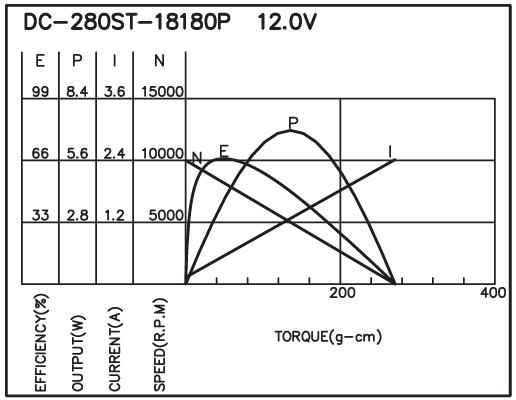

| DC-280ST-18180P | 6.0-12.0 | 12.0V CONSTANT | 10000 | 0.13 | 8299 | 0.51 | 47 | 4.61 | 4.01 | 67 | 2.42 | 271 | 26.57 |

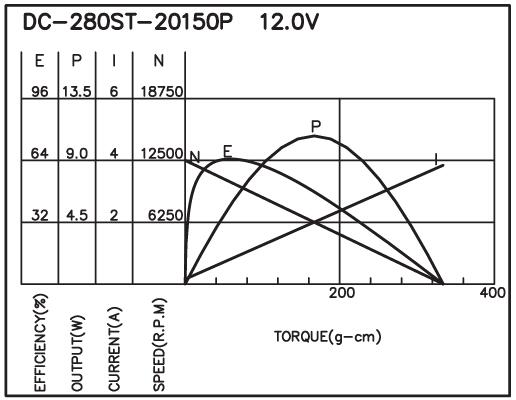

| DC-280ST-20150P | 6.0-12.0 | 12.0V CONSTANT | 12500 | 0.16 | 10616 | 0.80 | 54 | 5.29 | 5.95 | 65 | 3.85 | 337 | 33.04 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
